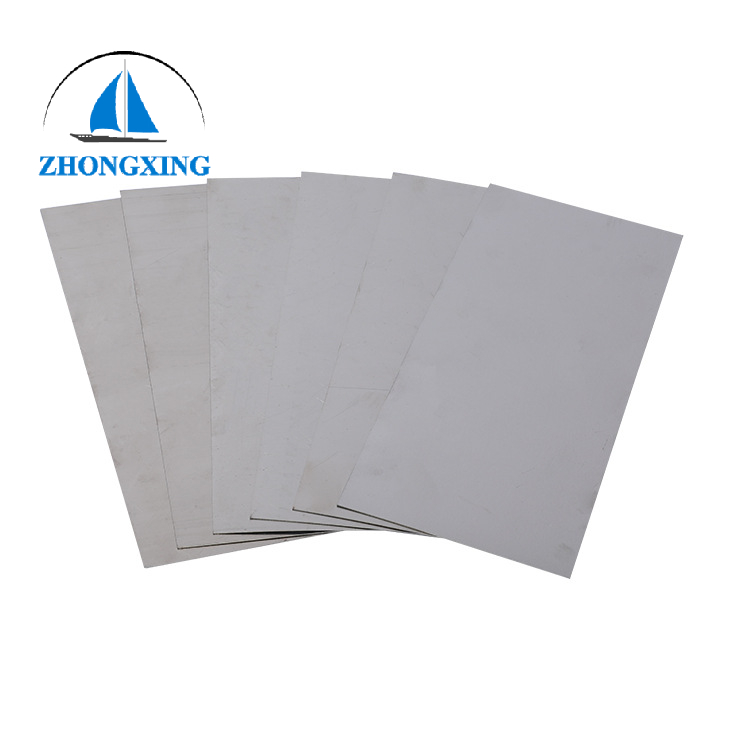

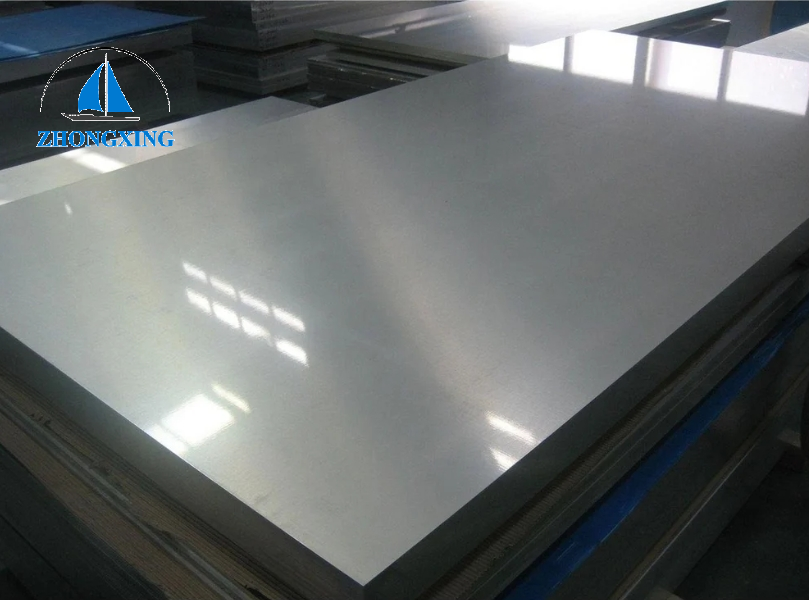

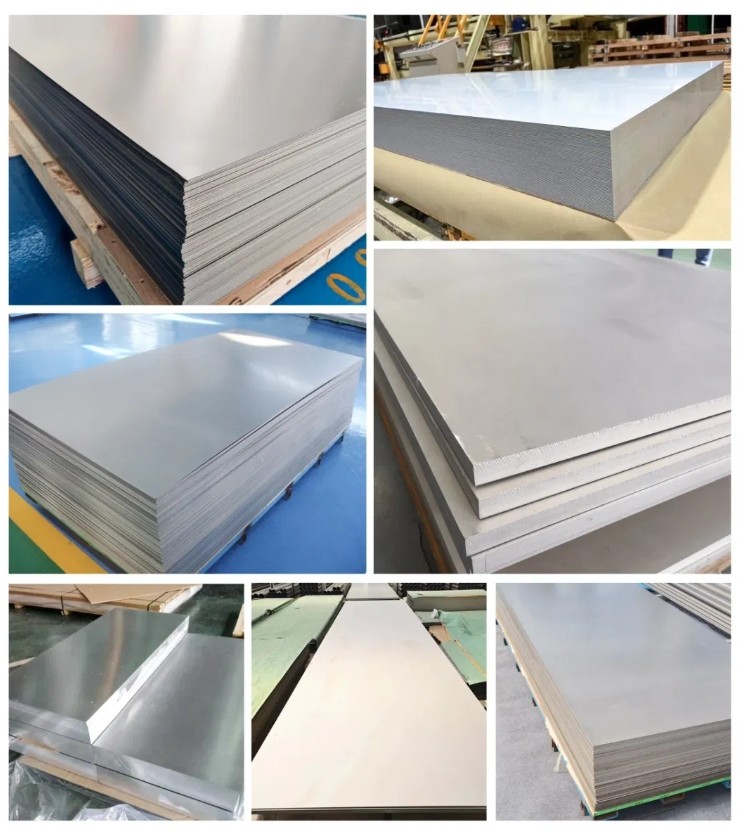

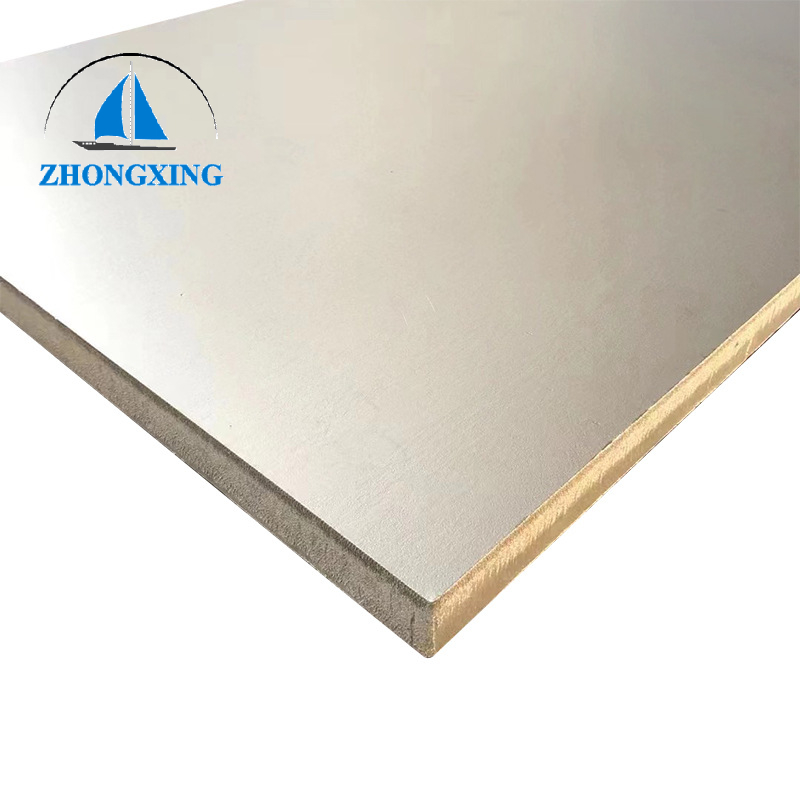

ASTM B265 ASTM F67 ASTM F136 AMS4928 Gr1 Gr2 Gr3 Gr5 Gr7 Gr12 Gr23 Titanium Plate/Sheet

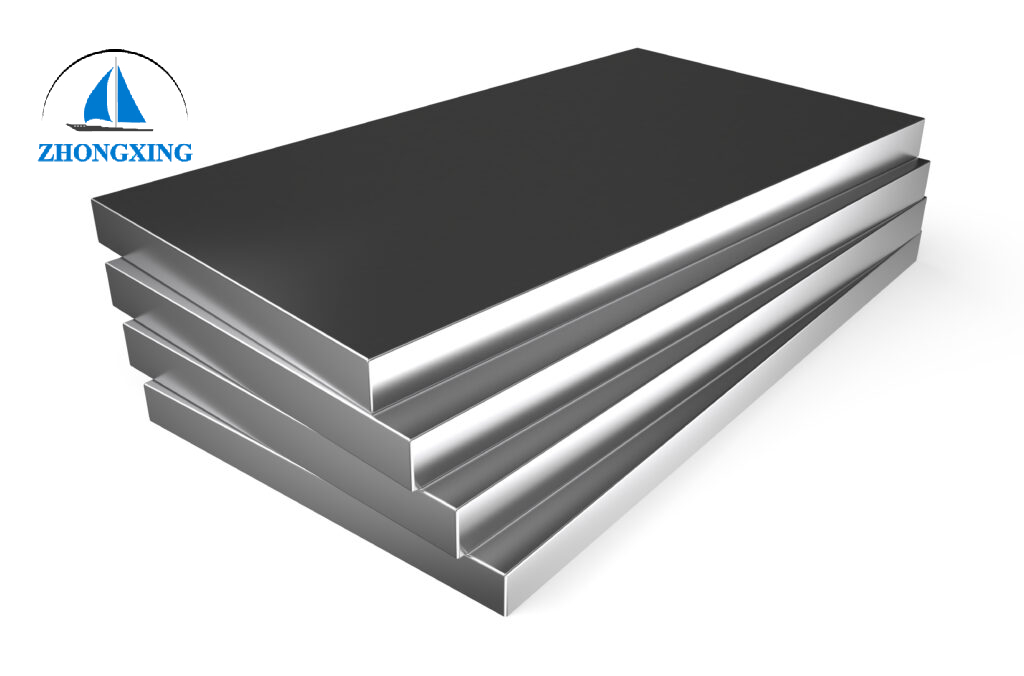

Titanium Sheet 200x200x2mm Gr2 Titanium Plate Mainly Used in Aerospace Industrial Processes

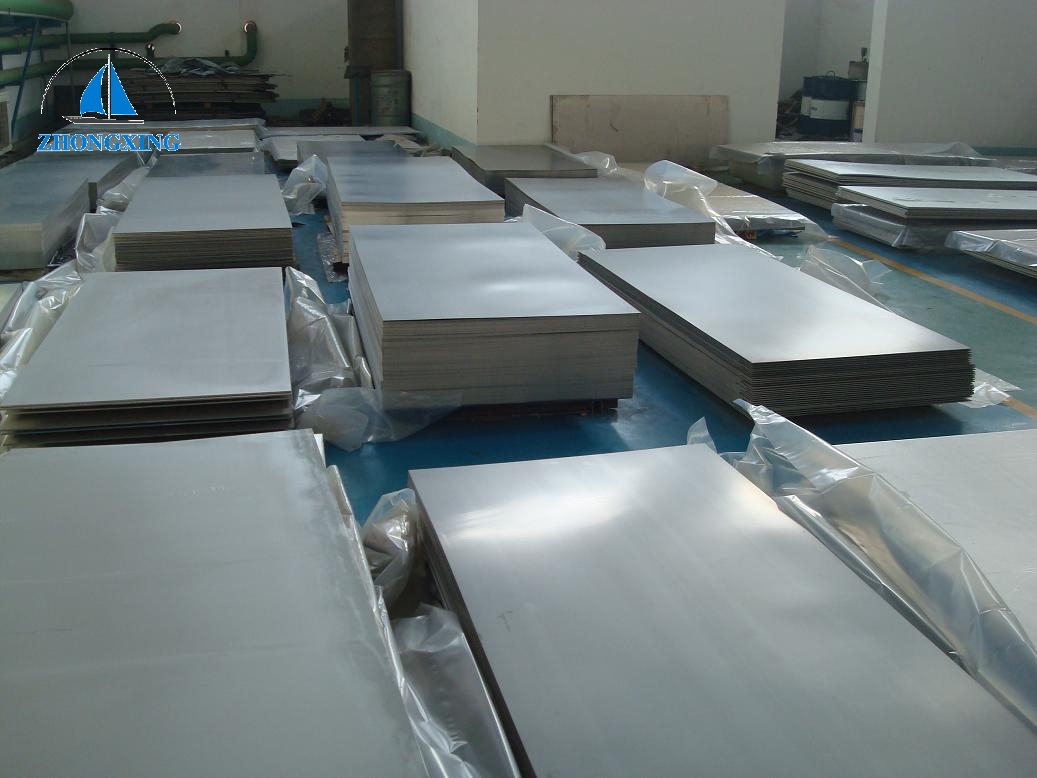

ASTM B265、ASTM F136、ASTM F67 Standard Precision TA3 GR3 Titanium Plate Thickness 0.5mm-80mm Higher Strength and Rigidity

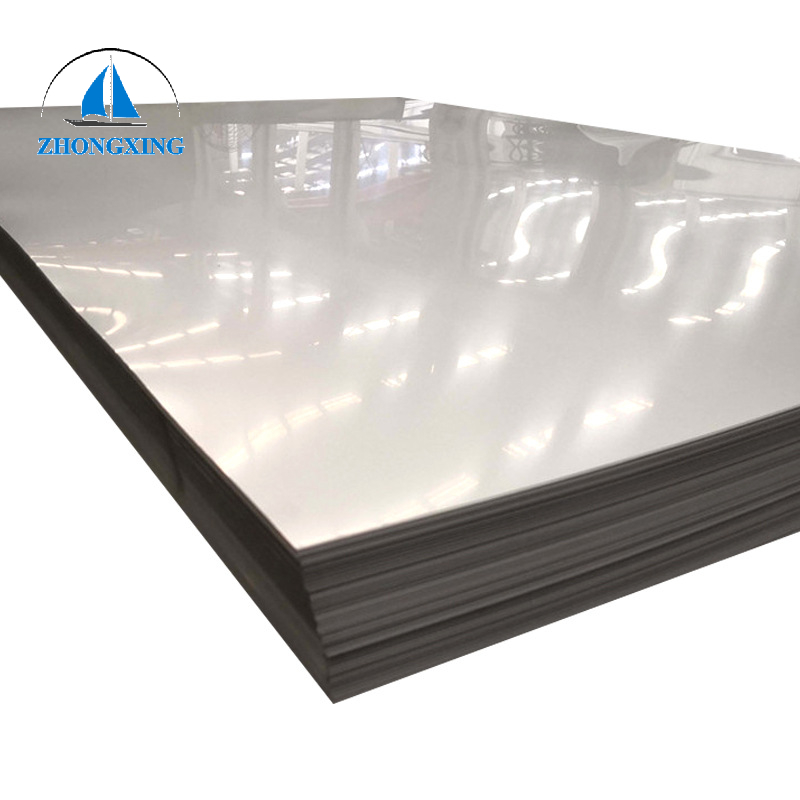

TA1 titanium plate is a new material with high strength, good corrosion resistance and high temperature resistance. It is widely used in aerospace, shipbuilding and marine engineering, chemical industry and other fields. It has excellent mechanical properties, stamping and welding properties, and high corrosion resistance to a variety of corrosive media. High-quality microstructure can be obtained by electropolishing treatment. At high temperatures, wear patterns include delamination, adhesion and oxidative wear.

GR5 titanium alloy, also known as Ti-6Al-4V ELI (Extra Low Interstitials), is a high-strength, high-toughness titanium alloy. It has wide applications in aerospace, biomedical, chemical and marine engineering fields

TA7 alloy is a medium-strength α-type titanium alloy that cannot be strengthened by heat treatment. It is usually used in the annealed state and has good fracture toughness at room temperature and high temperature. The alloy has good welding properties and is suitable for tungsten electrode and metal electrode welding processes under inert gas protection. It can be used to manufacture parts such as receiver casings and wall panels. The alloy's long-term working temperature can reach 500°C, and its short-term working temperature can reach 800°C. TATELI alloys with low interstitial impurity elements are suitable for use at low temperatures. The semi-finished products produced include plates, bars, cakes and rings, etc., which can also be used to produce castings.

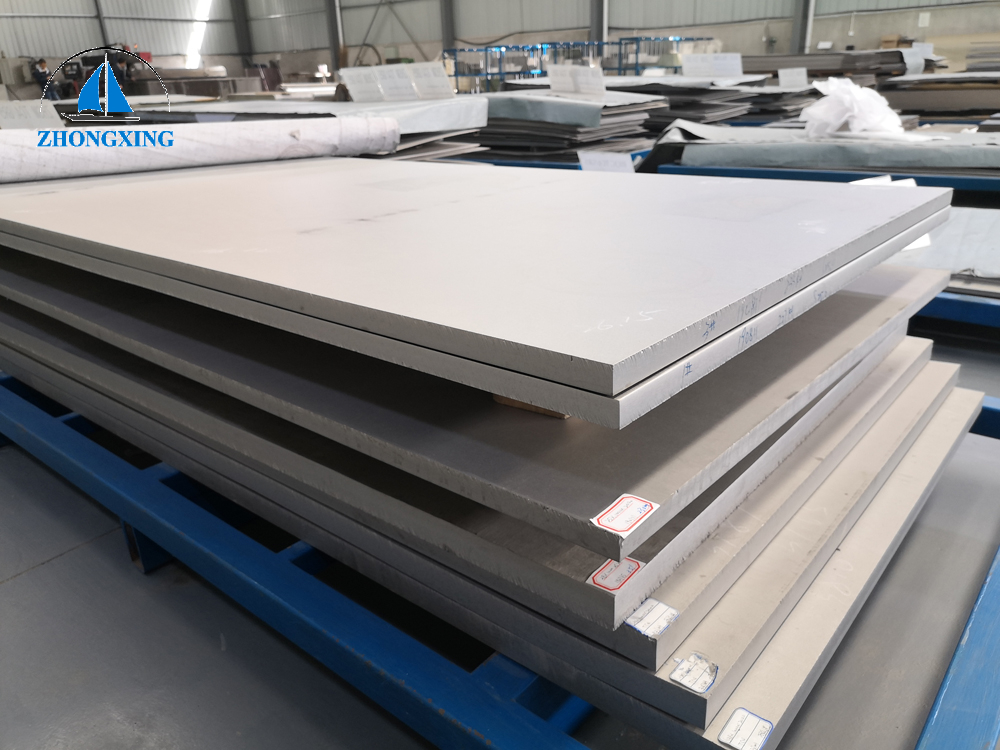

Gr9 titanium alloy is a low-alloyed near-α titanium alloy. The alloy has good cold formability and welding performance. The room temperature strength is 20%~50% higher than that of industrial pure titanium. It has good resistance in many media. Corrosion resistance. Therefore, Gr9 titanium alloy has become the most ideal material for making high-pressure resistant lightweight ducts on aircraft due to its excellent comprehensive properties.

Same composition as Grade 7 except impurity limits. 0.2% Pd added for corrosion resistance, very effective for improving crevice corrosion at elevated temperatures and where in contact with mildly reducing or variable oxidizing-reducing media. Properties are very similar to Ti Grade 1 because the addition of small amount of Pd does not significantly change microstructure.
Applications: Chemical processing and storage - containers, heat exchangers, ducting, pumps, valves, fittings and auxiliary equipment.
Forms typically available: billet, bar, plate, sheet, strip, rod, wire, extrusions, tubing.
Titanium Grades 1,2,3,4,7,11,and 12 are all considered unalloyed and have similar mechanical properties.

Addition of 0.3% Mo and 0.8% Ni to titanium increases corrosion resistance at a lower cost than Pd (see Ti Grades 7 and 11). Higher strength than unalloyed Ti grades 1 - 4, yet still formable.
Microstructure: Equiaxed alpha, with acicular alpha, primarily in welds or heat-affected zones, small amounts of beta.
Applications: Chemical processing, in mildly reducing or variable oxidizing-reducing media - containers, heat exchangers, pumps, valves, pipes and fittings.
Forms typically available: billet, bar, rod, plate, sheet, strip and tubing.
Titanium Grades 1,2,3,4,7,11,and 12 are all considered unalloyed and have similar mechanical properties.
